Boom Irrigation - Single Rail

Ultimately, the goal of any nursery is to grow the largest quantity, highest quality crops, in the smallest amount of space with the most efficient use of resources. Growth is dramatically affected by the volume of water and the timing of application, making irrigation one of the most important factors within the horticultural industry. Get it right and a crops overall resistance to stress from insects, disease and weather can be improved, get it wrong and a crops survival can be put at risk.

The Single Rail Boom Irrigation is an ideal glasshouse watering system. The single rail method of boom irrigation provides a stable boom for watering the crop that will not rock from side to side while travelling. The boom is pulled by a steel cable above the rail, so there is no chance of the boom slipping and over watering a section of crop. Each bay has it's own control panel that allows the user to program when the crops are going to be watered in advance as well as how much water is going to be put on the crop. A dosatron can be added along with a chemical tank and a second spray boom so that the crop can be sprayed through the boom as well as watered. This method allows the correct amount of chemical to be applied with a low volume of water.

Boom Irrigation

Technical information

  • One rail in galvanised profile 53×85 mm.

  • Bar holding trolley with 4 wheels mounted on bearings and double rollers to ensure a good stability.

  • Hose holding trolley with double wheel, thickness 45 mm.

  • Hose hung in loops that stretch across the greenhouse/tunnel when in use.

  • Bar with single or double nozzle row mounted on stainless tube.

  • Water supplying system hose diameter 25mm suspended on freewheeling trolleys.

  • Working speed adjustable from 2 m/min. to 16 m/min.

  • Telescopic boom mounting bar, so that booms can be adjusted for different crops.

  • Boom moved with steel cable to ensure a constant speed and eliminate the possibility of the trolley slipping on the track.

  • Galvanised and/or painted frame with epoxy primer and powder.

  • When not in use, boom can be 'parked' anywhere along the rail.

  • Modular system assembly, suitable for every kind of structure.

Speed

  • Working speed adjustable from 2 m/min. to 16 m/min.

Installed power

  • Installed power 230V 0,5 Kw 50/60Hz.

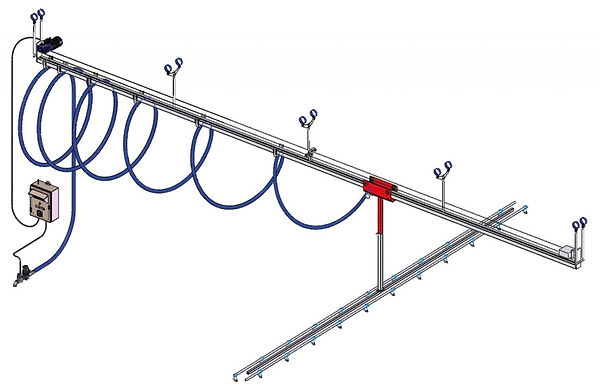

Boom Irrigation - Single Rail Diagram

boom irrigation
Boom Irrigation -
Electronic Control Panel Options
Boom Irrigation

MOD 1

  • Forward/backward

  • Cycle automatic/manual/continuous

  • Speed adjustment 2-16 m/min

  • One or two direction irrigation

  • Number of cycles programmable

  • Pre-drain timer.

MOD 2

  • Forward/backward

  • Cycle automatic/manual/continuous

  • Speed adjustment 2-16 m/min

  • One or two direction irrigation

  • Number of cycles programmable

  • Pre-drain timer

  • Daily start programmer.

MOD 3

  • Forward/backward

  • Cycle automatic/manual/continuous

  • Speed adjustment 2-16 m/min

  • One or two direction irrigation

  • Number of cycles programmable

  • Pre-drain timer

  • Daily start programmer

  • Zone irrigation.

Boom Irrigation
boom Irrigation
boom Irrigation
Boom Irrigation
Boom Irrigation
Boom Irrigation - Accessories
