RW32 Transplanter

Transplanter

The revolutionary wireless transplanter from Urbinati is the first of a new generation of transplanters on the market with singularly motorized fingers without cables. It can plant from any plug tray into any destination tray, making it the most flexible transplanter on the market. The RW32 Transplanter works with continuous planting. This means the transplanter plants into a constant stream of packs without the need for gaps inbetween. The RW32 Transplanter is ideally suited to being part of a transplanting line with trayfillers, de-nesters, etc saving double handling. This machine has a production capability of up to 35,000 plants per hour.

Transplanter
Transplanter

Technical Information


  • Programmable up to 36 fingers

  • Fingers singularly motorised with wireless technology

  • Control terminal with 8.4" colour touch screen

  • Programmable directly from the terminal

  • Self-diagnostics shown on display

  • Easily removable heads

  • Capable of planting from any plug tray to any destination tray

  • Interchangable finger spacers for optimal plant handling

  • Transplanter with plug and destination conveyor belts.

  • Working width 2100mm

  • Accumulation belt length 3000mm

  • Plug-tray infeed belt

  • Installed power 2KW 400V 3F 50/60Hz

  • Air usage 80 l/min

  • Weight 960Kg

  • CE Conformity


Options


  • Thermoformed tray block in the source

  • Exit conveyor belts

  • End rollers

  • Tray holding racks

  • Device to transplant into single pots

Transplanter
Transplanter

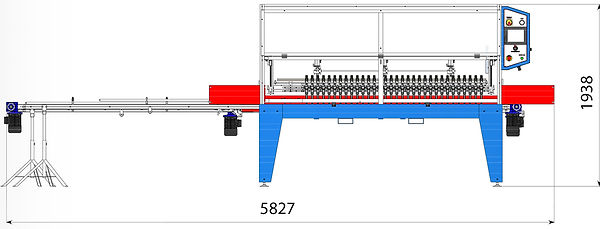

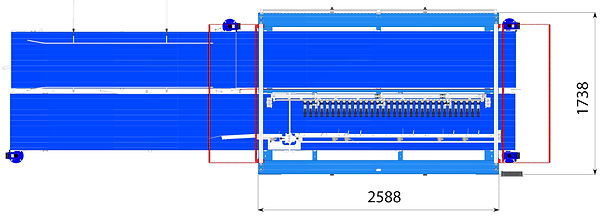

RW 32 Transplanter -Dimensions
